Rexroth A6VM Series 63 Axial Piston Cua Tsav Rau Bullgozers
Qhov ntau thiab tsawg 28 rau 200: nominal siab 400 bar tshaj siab siab tshaj 450 bar
Qhov ntau thiab tsawg 250 txog 1000: nominal siab 350 bar siab tshaj plaws siab 400 qhov siab tshaj plaws siab 400
Qhib thiab kaw Callcuits
Cov Khoom Siv Khoom Siv
XLF-A6VM Axial Piston Tsau Twj Tso Kua Mis Nta
1. Muab qhov sib pauv tau yooj yim nrog lub hom qub
2. Cov nqi sib tw heev
3. Cov suab nrov tsawg, muaj txiaj ntsig zoo, siab ntseeg tau, lub neej ntev
4. Me me, muaj zog hluav taws xob ntom ntom
5. Zoo roj zoo cov khoom.
6. 1} xyoo warranty
7. Rau cov khoom lag luam engineering, cov tubrog nkoj thiab cov khoom siv caij nkoj thiab kev lag luam, thiab lwm yam.
8. Rau axial piston twj nrog qhib lub voj.
9. Nruam ua haujlwm siab txog 280 bar, tam sim siab tshaj plaws ua haujlwm siab siab txog 450 bar.
10. Flation sib npaug los tsav tsheb ceev thiab kev hloov chaw thiab tuaj yeem ua tiav los ntawm kev kho tus kaum lub xauv sib txawv
11. Muaj kev nyuaj siab tas li, qhov ntsuas hluav taws xob tsis tu ncua thiab lwm txoj kev tswj hwm, nrog rau cov tshuaj tiv thaiv kev tswj hwm
12. Tsav tus ncej muaj peev xwm tiv taus Axial thiab radial loads
13. SAE thiab ISO Mounting Flange
14. Rau cov qauv ntawm lub axis ntawm zaj thiab rau ib lub voj ntau voj
15. Pib txhua lub sijhawm thaum muaj kev ntxhov siab.
Cov twj tso kua mis tseem hydraulic thiab lub cev muaj zog hydraulic hauv peb lub hoobkas. Peb tuaj yeem muab qhov kev hloov zoo zoo nkauj rau cov qauv qub no, yog tias koj tab tom nrhiav cov qauv no, peb tsuas yog tus xa khoom koj tsim nyog koom tes koj tsim nyog koom tes rau lub sijhawm ntev.

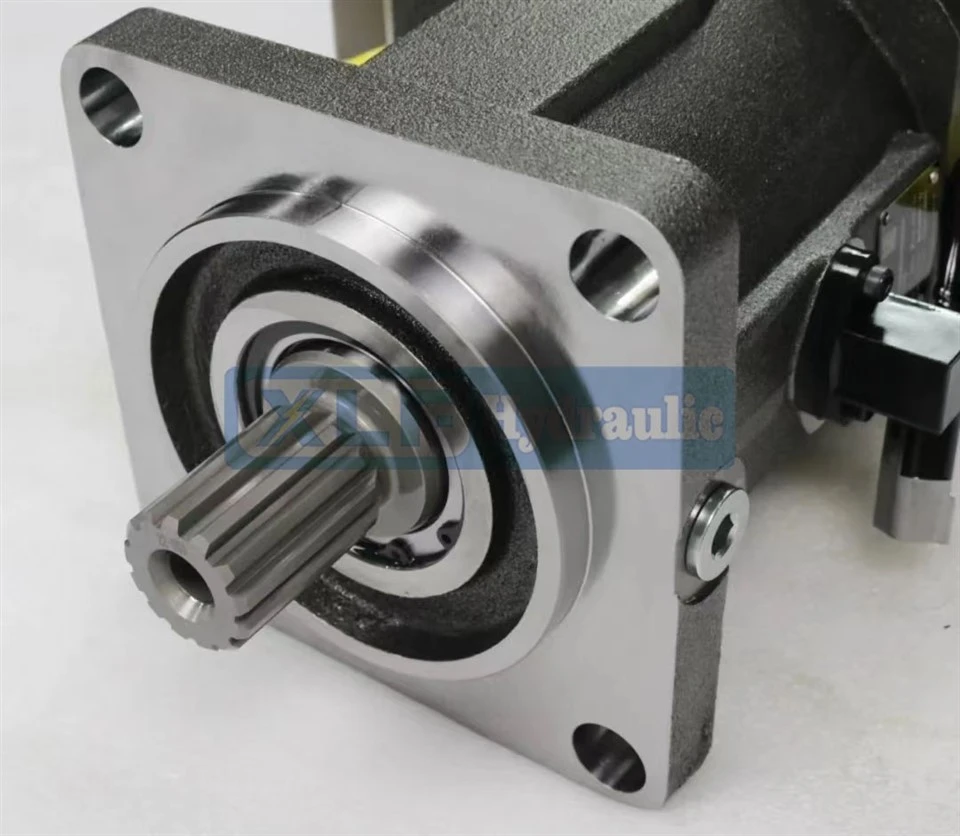

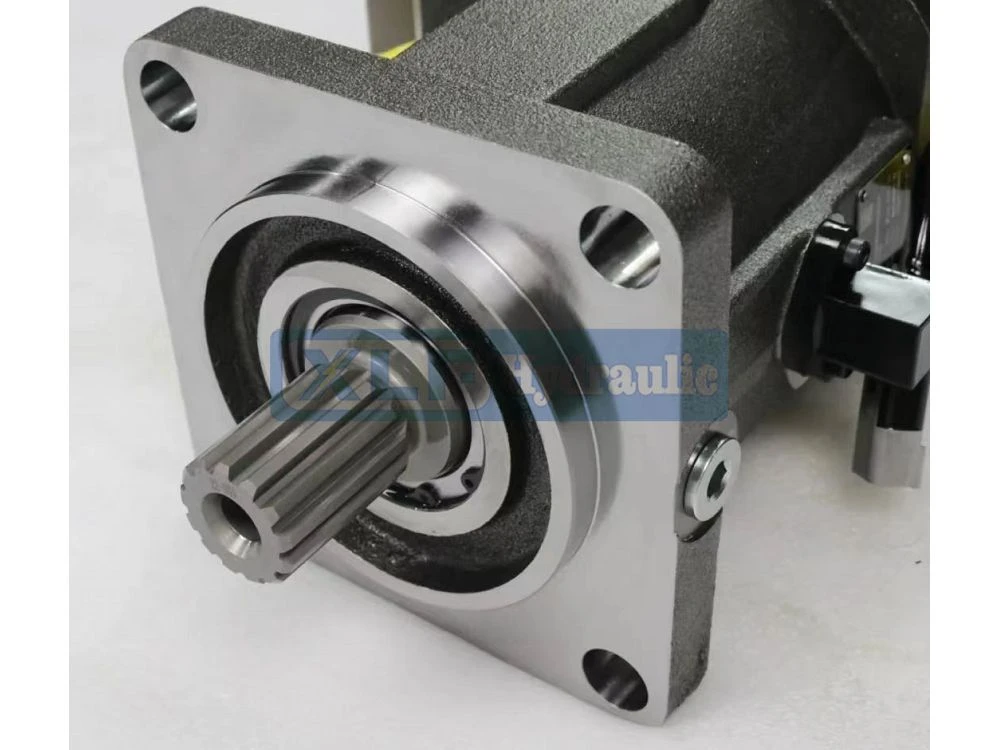

XLF-A6VM Axial Piston Tsau Cov Twj Tso Kua Muag Khoom Daim Duab
XLF-A6VM Axial Piston Tsau Cov Twj Tso Cai

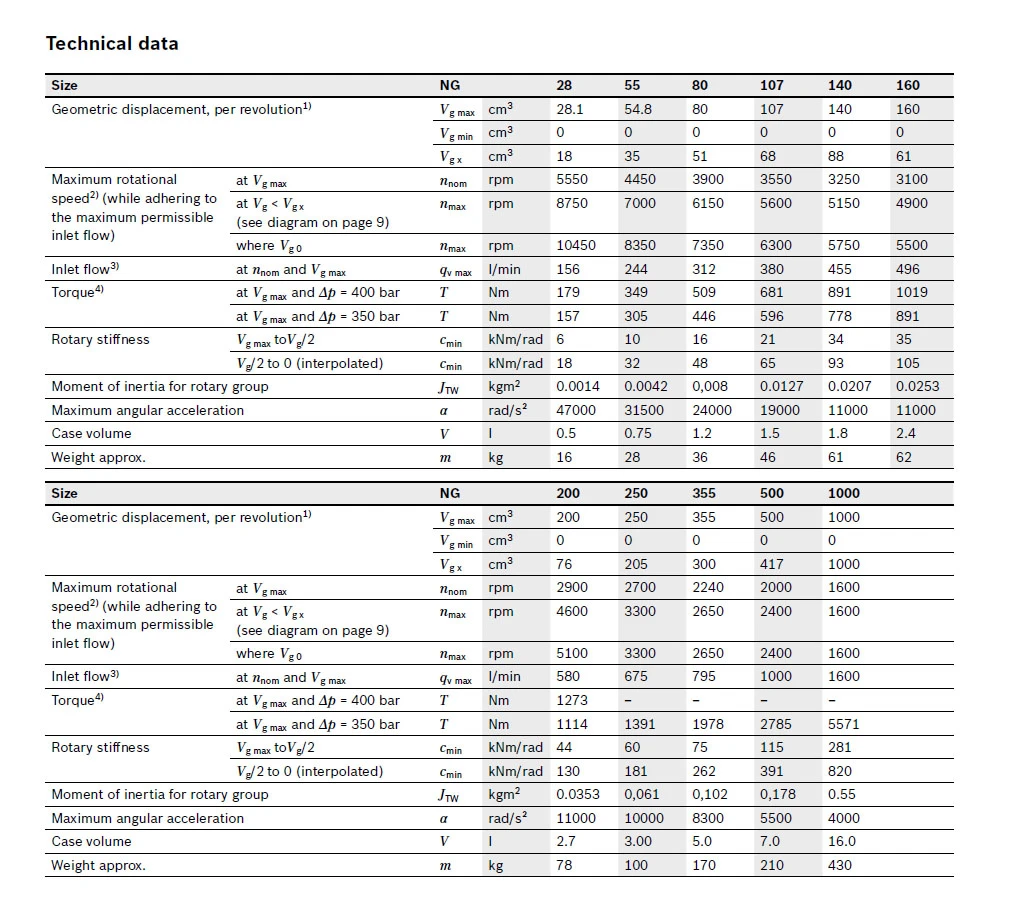

| Cov ntaub ntawv txheej txheem | ||||||||||||||||
| Qhov loj | Ng | 28 | 55 | 80 | 107 | 140 | 160 | |||||||||
| Geometric qhov chaw tso tseg, rau ib lub kiv puag ncig1 | Vg maxcm³ | 28.1 | 54.8 | 80 | 107 | 140 | 160 | |||||||||
| VG MIM³ | 0 | 0 | 0 | 0 | 0 | 0 | ||||||||||
| Vgx cm³ | 18 | 35 | 51 | 68 | 88 | 61 | ||||||||||
| Ntau tshaj plaws ntawm VGMA | Tlngr rpm | 5550 | 4450 | 3900 | 3550 | 3250 | 3100 | |||||||||
| ceev att2;) (thaum ua ntej Qhov kev tso cai tshaj plaws |
Ntawm VG<> Saib daim duab ntawm nplooj 9) |
Mmax rpm | 8750 | 7000 | 6150 | 5600 | 5150 | 4900 | ||||||||
| nlet txaus) qhov twg vg | 11M RPM | 10450 | 8350 | 7350 | 6300 | 5750 | 5500 | |||||||||
| Inlet Flow3 ntawm Nnom thiab VG Max | QV ma l / min | 156 | 244 | 312 | 380 | 455 | 496 | |||||||||
| Torque4 ntawm VG MX thiab AP =400 bar | T nm | 179 | 349 | 509 | 681 | 891 | 1019 | |||||||||
| ntawm VG Max thiab AP =350 bar | T nm | 157 | 305 | 446 | 596 | 778 | 891 | |||||||||
| Teb qeeb vg max touvg / 2 | Cmin knm / rad | 6 | 10 | 16 | 21 | 34 | 35 | |||||||||
| V / 2 txog 0 (cuam tshuam | Cmin knm / rad | 18 | 32 | 48 | 65 | 93 | 105 | |||||||||
| Lub caij ntawm inertia rau cov pab pawg teb | JRW KGM2 | 0.0014 | 0.0042 | 0,008 | 0.0127 | 0.0207 | 0.0253 | |||||||||
| Qhov siab tshaj plaws ongular | d rad / s2 | 47000 | 31500 | 24000 | 19000 | 11000 | 11000 | |||||||||
| AUB ntawv | V | 0.5 | 0.75 | 1.2 | 1.5 | 1.8 | 2.4 | |||||||||
| Luj Kwv yees | mg | 16 | 28 | 36 | 46 | 61 | 62 | |||||||||
| Qhov loj | Ng | 200 | 250 | 355 | 500 | 1000 | ||||||||||
| Geometric qhov chaw tso tseg, rau ib lub kiv puag ncig1 | Vg max | cm³ | 200 | 250 | 355 | 500 | 1000 | |||||||||
| Vg min | cm³ | 0 | 0 | 0 | 0 | 0 | ||||||||||
| Vgx | cm³ | 76 | 205 | 300 | 417 | 1000 | ||||||||||
| Siab tshaj plaws tig Ceev2;) (thaum ua ntej Qhov kev tso cai tshaj plaws nlet txaus) nlet now⊃3;) Torque4 TEB QUV |
Ntawm VGMA Toat VP<> (Saib daim duab ntawm nplooj 9 Qhov twg VGO Nnom thiab Vg Ma ntawm VG Max thiab AP =400 bar ntawm VG Max thiab AP =350 bar VG MX DVG / 2 |
7Tnom | rpm | 2900 | 2700 | 2240 | 2000 | 1600 | ||||||||
| Nmas | rpm | 4600 | 3300 | 2650 | 2400 | 1600 | ||||||||||
| 70ma | rpm | 5100 | 3300 | 2650 | 2400 | 1600 | ||||||||||
| 9V Max | l / min | 580 | 675 | 795 | 1000 | 1600 | ||||||||||
| T | Nm | 1273 | 一 | |||||||||||||
| T | Nm | 1114 | 1391 | 1978 | 2785 | 5571 | ||||||||||
| Cmin | Khob / rad | 44 | 60 | 75 | 115 | 281 | ||||||||||
| VG / 2 rau 0 (cuam tshuam) | Cmin | Khob / rad | 130 | 181 | 262 | 391 | 820 | |||||||||
| Lub caij ntawm inertia rau cov pab pawg teb Qhov siab tshaj plaws ongular AUB ntawv Luj Kwv yees |
JNW | KGM² | 0.0353 | 61 | 0,102 | 178 | 0.55 | |||||||||
| a | rad / s⊃2; | 11000 | 10000 | 8300 | 5500 | 4000 | ||||||||||
| V | 2.7 | 3.00 | 5.0 | 7.0 | 16.0 | |||||||||||
| m | kg | 78 | 100 | 170 | 210 | 430 | ||||||||||
XLF-A6VM Siv Tau Qauv
|
R902000000 AA6VM107HA1T / 63W-VSD527A R902000029 A6VM200hd1E / 63W-Vab017B R902000049 AA6VM80DA / 63W-VSC520B R902000130 AA6VM80HA2 / 63W-VSC520A R902000163 A6VM140AUG / 63W-VZB380A R902000243 A6VM200hd2d / 63W-Vab020b R902000328 A6VM107HD1D / 63W-VPB017B R902000343 A6VM107ha1 / 63W-Vab010a R902000463 A6VM160A2 / 63W-Vab027A R902000486 A6VM107ha2 / 63W-VZB010A R902004131 A6VM160HD2E / 63W-Vab010B R902004259 A6VM160HZX / 63W-VZB010B-S R902006574 A6VM160HA2T / 63W-VAB027A R902006576 A6VM55HA1T / 63W-VAB027A R902006848 A6VM160HD6 / 63W-VZB020B R902006850 A6VM107HD6 / 63W-VZB02000B R902009915 A6VM200HZ1 / 63W-VAB010B R902009992 A6VM160DA1 / 63W-VZB020DB R902011536 AA6VM80HD1D / 63W-VSC527B R902011637 A6VM140EP2D / 63W-VZB020B R902011648 A6VM107HD1D / 63W-VZB010B R902011739 A6VM80HA1 / 63W-VAB017A |
R902011815 A6VM140HD1D / 63W-VZB027B R902011911 AA6VM1601 / 63L-VSD51XA-S R902014022 AA6VM160HD2D / 63W-VSD517B R902014119 A6VM160HAHA1T / 63W-VAB010A R902014224 A6VM160HD2D / 63W-VZB020B R902014273 A6VM80HD2D / 63W-VAB020B R902014411 AA6VM80HD2 / 63W-VSC520B R902014413 AA6VM55HD2D / 63W-VSDD520B R902014417 AA6VM80HD2D / 63W-VSC520B R902014420 AA6VM107HD2D / 63W-VSDR520B R902014443 A6vm55hd2d / 63W-Vab020b R902014475 AA6VM107HD1 / 63W-VSDR520B R902016516 AA6VM107A2 / 63W-VSD527A R902016604 A6VM200HA1 / 63W-VAB027A R902016633 A6VM160HA-/ 63W-VAB027A R902016886 A6VM200ha2 / 63W-Vab010a R902021508 A6VM200hd2d / 63W-Vab010B R902024779 AA6VM1601 / 63L-VSD51XA-S R902024850 A6VM160HD2 / 63W-VPB020B R902027019 AA6VM107HD1D / 63W-VSD520B R902027065 AA6VM55HD2 / 63W-VSDR520B R902027097 AA6VM80HZ3 / 63W-VSC527B |
R902027106 AA6VM107HD2 / 63W-VSDD520B R902027111 A6VM80HD2D / 63W-VZB010B R902027302 A6VM160HAHA1T / 63W-VZB380A R902194341 A6VM107A2X / 63W-VZB010A-S R902194344 AA6VM160HD1D / 63W-VSD380B-ESK R902194346 AA6VM160HD1D / 63W-VSD380B-ESK R902194378 A6vm107hd1d / 63W-Vzb01X00B-s R902194391 A6VM200HA2R2 / 63W-VAB027PA R902194397 A6VK085ez700P001F / 71C0C2S7200-s R902194409 A6VM107DA3 / 63W-VZB027FPB-K R902194421 A6VM215HA1T30004F / 71MWV0S4A21G0-s R902194431 A6VM55Hd1D / 63W-VZB017B-ES R902194443 A6VK085ez800P001F / 711C0C2S7200-s R902194452 AA6VM200EP2 / 63W-VSD510PB R902194456 AA6VMMMMM160EP2 / 63W-VSD510PB R902194467 A6VM107EZ3 / 63W-VAB027FPB-K R902194468 A6VM140da1 / 63w-vxb017b-es R902196072 A6VM200EP2006 / 63W-VAB027HPB R902196080 A6VM200EP200EP2D / 63W-VAB020hpb R902196172 A6VM200HA1U2 / 63W-VAB027HPA-S R902196237 A6VM170P6D1P001G / 71MWV0R4R4A18W0-0 R902196280 A6VM200EZ2 / 63W-VAB027HPB |
R902196308 A6VM200hd2 / 63W-Vab01000a R902196511 AA6VM200HZ1 / 63W-VSD520B-E R902196568 A6VM115ez800P001G / 716d40T1200-Y R902196598 A6VM28EP2 / 63W-VAB010FPB-K R902196621 A6VM140EP2D / 63W-VZB020PB R902196640 A6VM150P200P200P000E / 71MWV0R4T12DV-0 R902196670 A6VM200HA1R2 / 63W-VAB027PA R902196682 A6VM150P001G / 716DV0D4T1200-Y R902196700 AA6VMMMMM160EP2 / 63W-VSD510FPB-K R902196724 AA6VM160HA1 / 63L-VSD51XA-ES R902196742 A6VM170500P001G / 716DV0D4T1200-S R902196765 A6VM170HP6000000G / 71tx0D4T1200-s R902196782 A6VM200EP200EP2 / 63W-Xab017FPB-Sk R902196799 A6VM115HA1000004H / 716DV0D4T1100-0 R902196838 AA6VM55HZ3 / 63W-VSD510B R902196843 A6VK060Hz7000001g / 71c0c4C4S7200-Y R902196847 A6VM55EP1D / 63W-VAB017PB R902196852 A6VM80EZ3 / 63W-VAB027PB R902196860 A6VM140ez1 / 63W-VZB027PB R902196863 A6VM215P200P200P000f / 71MWV0S4A21111111111100-0 R902216848 AA6VM160HD2 / 63W-VSD51000B R902216868 A6VM160HAHAHA1 / 63W-VAB02700A |
|
R902216870 A6VM160EP2 / 63W-VZB027FPB R902216884 AA6VM160HD1 / 63W-VSD52000B R902216885 AA6VM160HD1 / 63W-VSD51000B R902216907 AA6VM160HD1D / 63W-VSD52000B R902216908 AA6VM160HD1D / 63W-VSD52700B R902216919 A6VM160A2 / 63W-VAB02700A R902216922 A6VM160EP2D2D / 63W-VZB0170hB R902216926 A6VM160HAHA1T / 63W-VZB02700A R902216929 AA6VM160HAHA1T / 63W-VSD52700A R902216940 A6VM160HD1D / 63W-VAB02000B R902216942 A6VM160EP2 / 63W-VZB017FPB R902216945 AA6VM160HD1 / 63W-VSD51000B R902216947 AA6VM160HD2 / 63W-VSD52000B R902216958 A6VM160HD2 / 63W-Vab01000B R902216964 A6VM160HAHA1T / 63W-VZB02700A R902216967 A6VM160HD1D / 63W-VZB02000B R902216969 AA6VM160HA-/ 63W-VSD51000A R902216974 AA6VM1601 / 63W-VSD51700A R902216977 AA6VM1601 / 63W-VSD52000A R902216978 AA6VM1601 / 63W-VSD52700A R902216987 A6VM160HAHA1T / 63W-VZB02700A R902216991 A6VM160HD1D / 63W-VZB02000B |
R902217500 A6VM55Hd1E / 63W-VZB02700B R902217510 AA6VM160HD1 / 63W-VSD52700B R902217532 A6VM28hd1 / 63W-Vzb01000B R902217611 A6VM80HA1R2 / 63W-VAB0270PA R902217624 A6VM160HD1 / 63W-VZB02000B R902217625 A6VM160hz1 / 63W-VZB02000B R902217627 A6VMM160EP2 / 63W-VAB0100LB R902217631 A6VM160EP2 / 63W-VZB020FPA R902217670 A6VM200EP200EP2D / 63W-VAB0200LB R902217673 A6VM140A2R2 / 63W-VZB01PA-Y R902217674 A6VM80HD1 / 63W-VAB38000B R902217681 A6VM107EZ3 / 63W-VZB0200PB R902217719 A6VM80HA1 / 63W-VAB01700A-Y R902217722 A6VM80P2D / 63W-VZB0100PB R902217732 AA6VM107HD1 / 63W-VSD51000B R909611000 AA6VM80HZ3 / 63W-VSC520B R909611019 A6VM200HA1T / 63W-VAB027A R909611116 A6VM107HA1T / 63W-VZB027A R909611127 A6VM160HD1E / 63W-VZB027B R909611128 A6VM160HAHA1T / 63W-VZB010A R909611134 A6VM200HA1T / 63W-VAB010A R909611135 A6VM107HD1E / 63W-VZB027B |
R909611136 A6VM55Hd1E / 63W-VZB027B R909611145 A6VM80HD1E / 63W-VZB027B R909611159 A6VM160HD2D / 63W-VAB010B R909611161 A6VM107ha2 / 63W-VZB02700A-Y R909611181 A6VM55HA2 / 63W-VAB020A R909611189 A6VM200hd2 / 63W-Vab027B R909611269 A6VM160HD1E / 63W-VAB010B R909611273 A6VM160HD1 / 63W-Vab010B R909611276 A6VM160HAHA1T / 63W-VAB380A R909611287 A6VM107ha1 / 63W-VZB010A R909611327 A6VM107HD2D / 63W-VZB010B R909611330 AA6VM160HD2 / 63W-VSD520B R909611332 A6VM55Hd1D / 63W-VZB010B R909611334 AA6VM160HA1T / 63W-VSD527A R909611350 A6VM200hd1E / 63W-Vab027B R902486345 A6VM280HA20004G / 71MWV0S4A41VF-S R902489440 A6VM280P600P001F / 71MWV0S4A4200-0 R902496338 A6VM280ha2000004G / 71Mwv0s4A420h-t R902512337 A6VM280HA1T30004F / 71MWV0S4A2VF-S R902515281 A6VM280P200P000G / 71MWV0S4T32VF-S R902515289 A6VM280HA1T30004G / 71MWV0S4A2VF-S R902222445 A6VK060EP100P100P100P000A / 71MWV0M4Z82DV-0 |
R902223015 A6VM060-70004C / 71C0C4C4S7100-0 R902229161 A6VK060Hz7000000001F / 71Mwv0m4Z8100-0 R902233611 A6VK085ep100P000A / 71Mwv0n4N4DV-0 R902220758 A6VM085P200P200P000B / 71MWV0N4Z910V-0 R902204936 A6VK085P200P005B / 71JWV0N4S96S91D0-S R902200321 A6VK085P500H000B / 71C0C0C2S7200-s R902200310 A6VK085P500H000B / 71C0C2S72B0-S R902233736 A6VM085P600P000A / 71Mwv0n4N40Cv-0 R902149343 A6VK085ez700h001f / 711c0c2s7200-s R902149318 A6VK085ez700h00001f / 711c0c2s720x-s R902233886 A6VM80HA1R1 / 63W-VZB0170PA R902214736 AA6VM140EP1 / 63W-VSDXXHPB-S R902216566 AA6VM160DA1 / 63W-VSD51X00B-S R902216762 AA6VMMMMMM160EP1 / 63W-VSDXXHPA-S R902216913 AA6VMMMMMM160EP1 / 63W-VSDXXHPB-S R902216914 AA6VMMMMMM160EP1 / 63W-VSDXXHPB-S R902196935 AA6VMMMMMM160EP1 / 63W-VSDXXHPB-S * FNI * R902216951 AA6VMMMMM160EP2 / 63W-VSD510FPB R902222259 AA6VMMM160EP2 / 63W-VSD527HHA R902222276 AA6VMMMMMM160EP2D2D / 63W-VSD5200LB R902216615 AA6VMMMMMMMM160EP2D / 63W-VSD5200XB-S R902222324 |
|
AA6VMMMMMM160EP2DX / 63W-VSD52XHPB-S R902196724 AA6VM1601 / 63L-VSD51X00A-s R902216976 AA6VM1601 / 63L-VSD51X00A-s R902092642 AA6VM1601 / 63L-VSD51X00A-s R902216865 AA6VM160HA-/ 63W-VSD51000A R902216975 AA6VM160HA-/ 63W-VSD51000A R902216866 AA6VM1601 / 63W-VSD52000A R902216978 AA6VM160HA1 / 63W-VSD52700A-Y R902216881 AA6VM160HA1T / 63W-VSD52700A-Y R902216883 AA6VM160HA1TX / 63W-VSD52700A-s R902216897 AA6VM1602602 / 63W-VSD52000A R902216899 AA6VM1602T / 63W-VSD527D0A R902216898 AA6VM1602602X / 63W-VSD52000A-S R902222243 AA6VM160HD1 / 63W-VSD51000B R902216894 AA6VM160HD1D / 63W-VSD38000B-Y R902222079 AA6VM160HD1D / 63W-VSD51000B R902205723 AA6VM160HD1D / 63W-VSD52000B R902216572 AA6VM160HD2 / 63W-VSD52000B R902216575 AA6VM160HD2 / 63W-VSD52000B R902216948 AA6VM160HD2 / 63W-VSD52000B R902216949 AA6VM160HD2 / 63W-VSD52700B R902216610 AA6VM160HD2D / 63W-VSD52000B R902216608 |
AA6VM160HZ1 / 63W-VSD51000B R902218620 AA6VM200EP2 / 63W-VSD517HPB R902218621 AA6VM200EP2 / 63W-VSD527HPB R902218578 AA6VM200EP2D / 63W-VSD517DPB-Y R902218692 AA6VM200HA1 / 63W-VSD51700A R902218688 AA6VM200HA1 / 63W-VSD52700A R987198403 A6VM 80 ha1r1 / 63W0300-vzb017ha R987310688 A6VM 80 ha1r1 / 63W0300-vzb027paxega R987212567 A6VM 80 HA1R1 / 63W0400-VZB017HA R987218933 A6VM 80 HA1R1 / 63W-0400VZB027HA R987128343 A6VM 80 ha1r1 / 63W-0400VZB027HB R987215659 A6VM 80 ha1r2 / 63W0370-VAB027HA R987065314 A6VM 80 ha1r2 / 63W0385-VZB027HA R987065657 A6VM 80 ha2u1 / 63W0400-VAB020A R987062040 A6VM 80 ha2u1 / 63W0400-vzb020a R987255292 A6VM 80 HD1 / 63W0377-VZB027B R987324689 A6VM 80 HD2 / 63W0200-VZB010B R987212291 A6VM107HD1 / 63W0450-Vzb010B R987313571 A6VM107HZ3 / 63W0600-VZB020B R987351785 A6VM140HZ1 / 63W-0700-VZB020B R987315387 A6VM160hax1 / 63W0880-vzb027dhak-lim140cc R987342702 A6VM160HD1D / 63W0350-VAB020B R902222233 |
A6VMM160EP2 / 63W-VAB0100PB R902426235 A6VM500hd3 / 63W2-VZH150A R902424629 A6VM500hd3 / 63W2-VZH010a R909604241 A6VM200HA2 / 63W-VAB020A R902067704 A6VM107HA1T / 63W-VZB027A R902067704 A6VM107HA1T / 63W-VZB027 R909604241 A6VM200HA2 / 63W-VAB020A R902225528 A6VM107A2t / 65W-Vab010a R902000243 A6VM200hd2d / 63W-Vab020b R902000243 A6VM200hd2d / 63W-Vab020b R902000243 A6VM200hd2d / 63W-Vab020b R909611116 A6VM107HA1T / 63W-VZB027A R910943153 AA6VM250HZ / 63W2-PZB027B R902229447 A6VK060EZ800P001C / 71MWV0M4Z8100-0 R902242675 A6VM115ep100P000E / 71MWV0P4T120U-0 R902245598 A6VK060P500P000B / 71MWV0M4Z8100-0 R909604234 A6VM107A2T / 63W-VZB020A R971035398 A6VM160HD1D / 63W-VAB010DB R902444707 AA6VM355HD3 / 63W2-VZH010a R902444707 AA6VM355HD3 / 63W2-VZH010a R902431318 LA6VM250EP2D / 63W2-VZB017B-SO177 R902428129 A6VM250HD3 / 63W2-VZB010A R909610041 |
Cim npe nrov: Rexroth A6VM Series 63 Axial Piston Lub Cev Muaj Zog Rau Cov Tub Rog A6vm Series 63 Axial Piston Cua Tsav Rau Cov Hlau Chaw Tsim Tshuaj, Cov Chaw Muag Khoom
